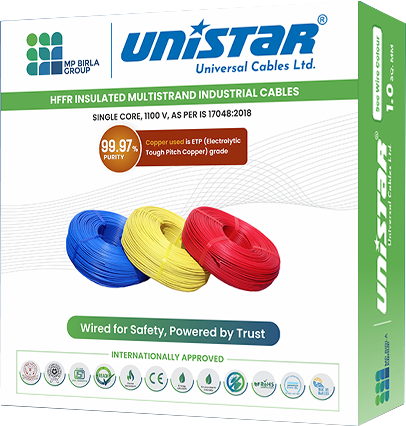

Unistar HFFR

Unistar HFFR

SINGLE CORE, HFFR INSULATED MULTI STRAND INDUSTRIAL CABLES, 1100 V, AS PER IS 17048:2018

These are Single Core Unsheathed HFFR Insulated General Purpose Cables with Flexible Conductor. The copper conductor is Flexible Copper Conductor of Class 5 as per IS 8130. Available in Red, Yellow, Blue, Black, White, Green, Grey or Other as needed.

Nominal Cross Section Area of Conductor
(Sqmm)		 Number/Nominal Diameter of Copper Wire
(Nos/mm)		 Nominal Insulation Thickness
(mm)		 Conductor Resistance (Max) at 20°C
(Ω/Km)		 Current Carrying Capacity 2 cables, single phase
(Ampere)
0.50 16/0.20 0.60 39.00 >4
0.75 24/0.20 0.60 26.00 >7
1.00 32/0.20 0.60 19.50 >11
1.50 32/0.25 0.60 13.30 >14
2.50 48/0.25 0.70 7.98 >19
4.00 56/0.30 0.80 4.95 >26
6.00 80/0.30 0.80 3.30 >33

HFFR Compound is as per IS 17048

More than 100% Conductivity (%-IACS)
