Unistar FR-LSH

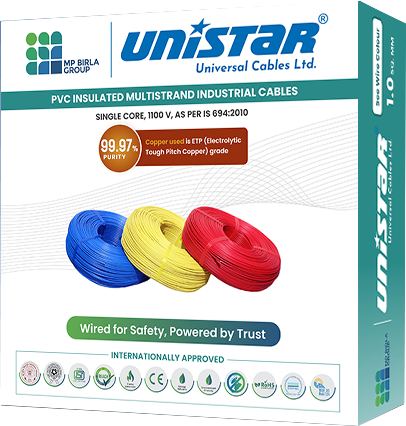

Single Core, PVC Insulated Multi Strand Industrial Cables, 1100 V, As Per IS 694:2010

These are Single Core Unsheathed FR / FR- LSH PVC Insulated General Purpose Cables with Flexible Conductor. The conductor is Flexible Copper Conduct or of Class 5 as per IS 8130. Available in Red, Yellow, Blue, Black, White, Green, Grey or Other as needed.

Nominal Cross Section Area of Conductor
(Sqmm)		 Number/Nominal Diameter of Copper Wire
(Nos/mm)		 Nominal Insulation Thickness
(mm)		 Conductor Resistance (Max) at 20°C
(Ω/Km)		 Current Carrying Capacity 2 cables, single phase
(Ampere)
0.50 16/0.20 0.60 39.00 4
0.75 24/0.20 0.60 26.00 7
1.00 32/0.20 0.60 19.50 11
1.50 32/0.25 0.60 13.30 14
2.50 48/0.25 0.70 7.98 19
4.00 56/0.30 0.80 4.95 26
6.00 80/0.30 0.80 3.30 33

FR/FR-LSH PVC Compound is as per IS 5831

More than 100% Conductivity (%-IACS)
