Medium Voltage Cables

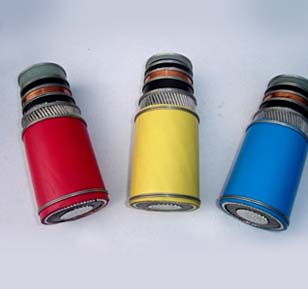

Unistar Medium Voltage XLPE cables from 3.3 kV to 33 kV grade are manufactured by dry curing process to Indian as well as international specifications. These cables therefore have improved thermo mechanical and excellent electrical properties. These cables find their application in power transmission & distribution, Railways, fertilizers , Petro-chemical plants, submarine and under water power transmission.

Number of Cores Voltage Grade Cross Sectional Area (sqmm) Specification Type/Application
Single Core 3.3 KV to 11 KV(UE) 25 to 1000 IS 7098 part II
IEC 60502
Part I & Part II		 Power transmission & distribution, Under water Transmission, Radiation resistant cables up to 11 KV for power transmission in nuclear power plants.
Single Core 22 KV (E) 35 to 1000 IS 7098 part II
IEC 60502
Part II
Single Core 33 KV (E) 50 to 1000 IS 7098 part II
IEC 60502
Part II
Three Core 3.3 KV to 11 KV(UE) 25 to 400 IS 7098 part II
IEC 60502
Part I & Part II
Three Core 22 KV (E) 35 to 400 IS 7098 part II
IEC 60502
Part II
Three Core 33 KV (E) 55 to 400 IS 7098 part II
IEC 60502
Part II

Cables with improved fire performance characteristics are also available. The sheath of these cables shall be specially formulated to meet the requirements of flame retardance (FR) or Flame retardance with reduced halogen evolution and Low Smoke (FRLS)
