High Voltage Capacitors

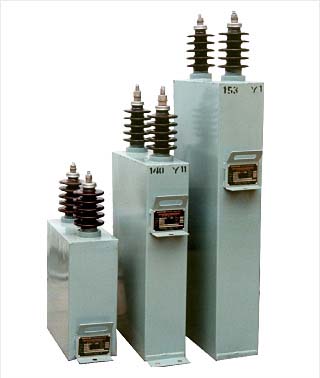

HT unit: Capacitor units are manufactured in the range of 50KVAr to 1000KVAr & in the voltage range of 1 KV to 22KV. High voltage capacitor banks (3.3Kv to 132KV / 220KV) are formed by series parallel combinations of these units & connected in various formations of star / double star and delta, depending upon customer’s requirement / applications and applicable protection schemes. We have supplied hundreds of banks of ratings varying between 2-24 MVAr With similar capacitor units. Capacitors are type tested as per IEC / ISS (IS-13925) in CRPI (Govt of India), accredited by NABL Laboratory.

Product Range

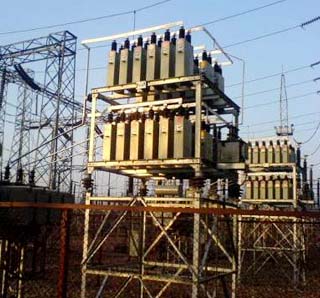

High voltage shunt capacitor banks (3.3Kv to 132KV / 220KV) are manufactured by capacitor unit’s size range of 50KVAr to 1000KVAr & voltage range of 1 KV to 22KV. Capacitor units are connected in various formations of star / double star and delta, depending upon customer’s requirement / applications and applicable protection schemes. Capacitor banks are available in all the ratings to suit the customers / system requirement.

Applications: HV Capacitors are in service for various applications (like Steels / Cements / Chemicals-Fertilizers /Paper/ Railways / Defense/ Electricity boards / Utility company’s) for more than four decades in India and in other countries like Indonesia , Georgia, Bangladesh, Iraq,Nepal,Bhutan.

Technical Information

• Lower dielectric losses in the order of 0.12w/kVAr.

• Capacitor bank upto 200 MVAR, 145 kV are in operation

• Capacitor up to 700 kVAr, 22 kV, 1Ph, and 50Hz unit size has been manufactured and tested.

• Bigger capacitor unit sizes are also available on demand.

Design / Technology

• UCL is one of the few companies having its own R & D department to experiment with new raw materials and processes.

• Plant fully equipped with raw material and process testing laboratory.

• Capacitor elements winding through fully automatic /computerized machines in ultra clean and humidity controlled conditions as per international standards.

• Capacitors are type tested as per IEC / ISS (IS-13925) in CRPI Laboratory at Bangalore (NABL accredited, laboratory of Govt of India)
